Echo · Hollow Composite Arch
Echo Arch.
Origin
A bridge in a box.

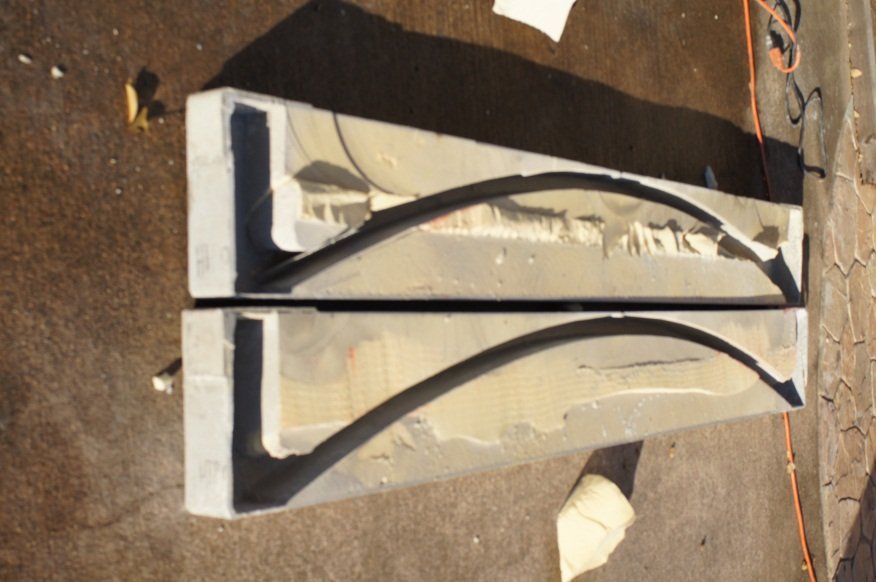

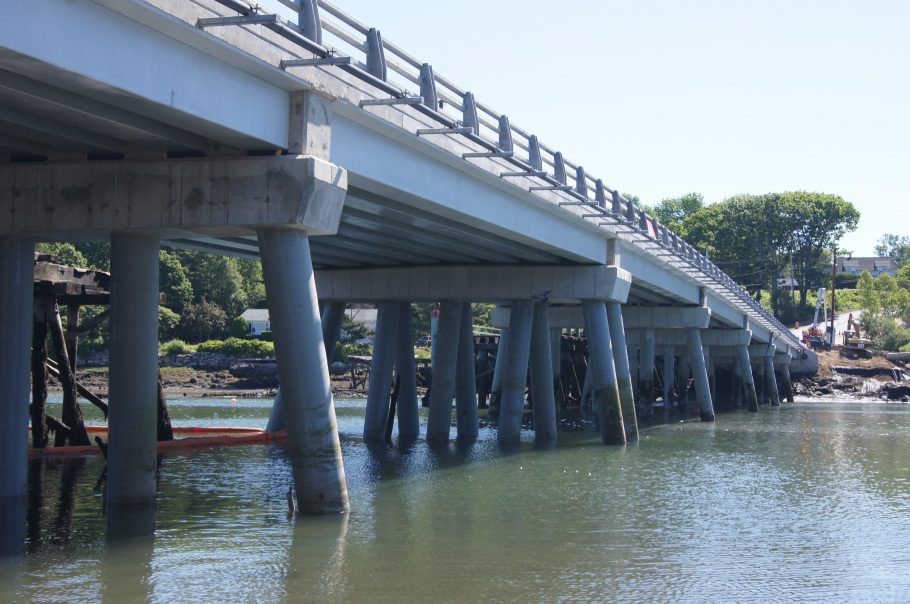

The Echo Arch adapts a proven lightweight composite bridge beam, a hollow section originally engineered to carry highway loads. That same section becomes a blast-tuned arch when cast into a panel format.

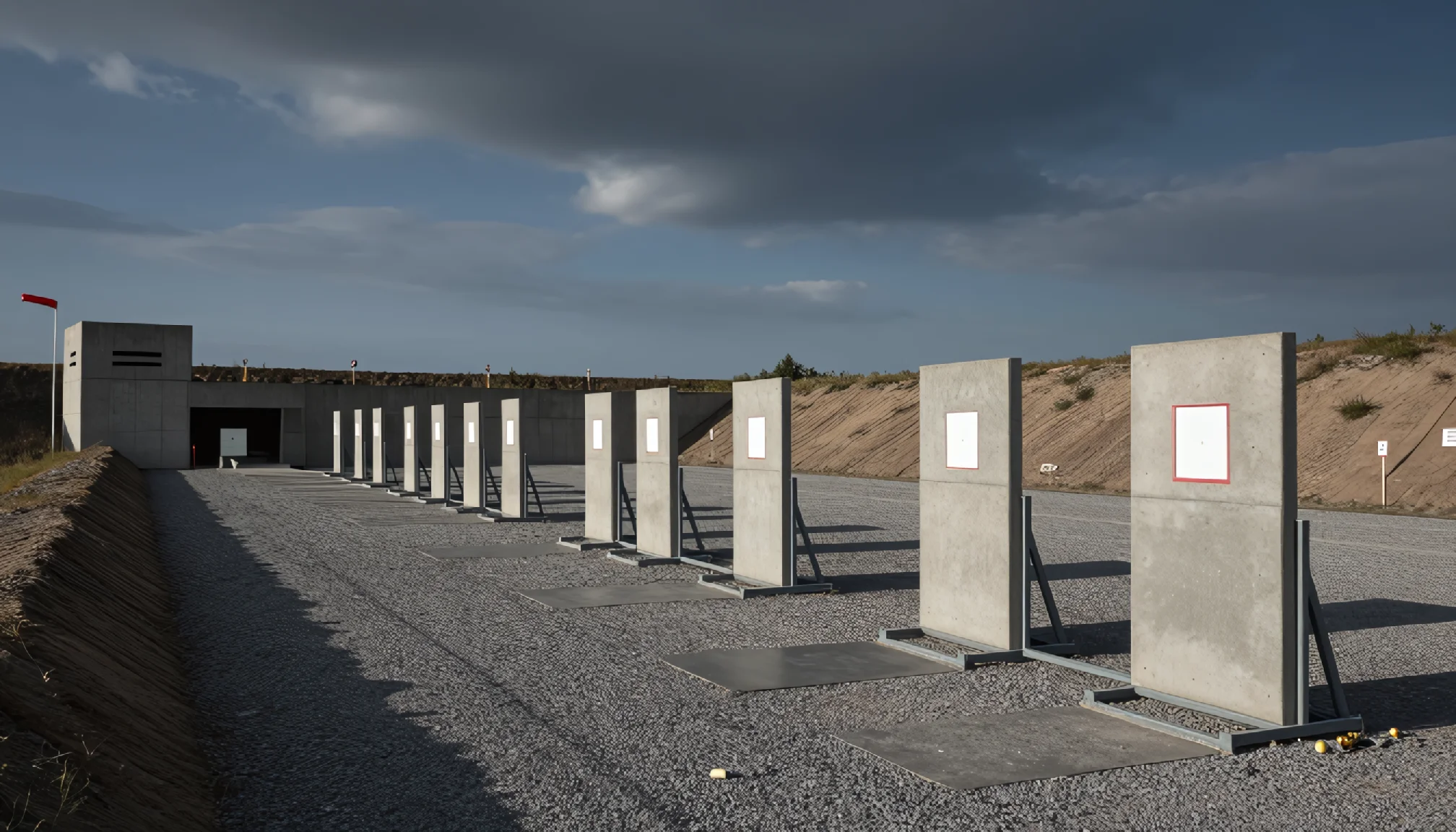

Validation
Three Echo Arch shock-tube tests.
Validated test footage from the Echo blast program, recorded on a shock tube (a rig that fires a controlled air blast wave at the panel). Pressures are peak overpressure, the spike above normal air pressure at the panel face: about 1 psi breaks windows and 10 psi collapses ordinary buildings, so these runs reach several times the level that levels a normal structure. Tests 1 and 2 use the same 6-inch panel, with Test 2 re-loaded at higher pressure without repair or replacement. Test 3 steps up to a 12-inch panel at the top of the tested range.
Echo Arch · Test 1 · 6-Inch Panel
11.8 psi
Initial blast pulse. Panel intact. Max deflection 0.5 in.
Echo Arch · Retest · Same Panel
16.6 psi
The exact same panel from Test 1, hit again at higher pressure with no repair or replacement. It held, max deflection 0.5 in.
Echo Arch · Test 3 · 12-Inch Panel
40 psi
Real-time shock-tube validation at maximum rating. Max deflection 0.5 in.
Test Apparatus
1–40 psi
BakerRisk shock tube, La Vernia, TX. Panels up to 12 × 12 ft. Also used for Echo Lite.
11.8
psi · Test 1
16.6
psi · Retest, same panel
The exact same panel from Test 1, hit again at higher pressure with no repair or replacement. It held.
40
psi · 12-Inch
Roughly the peak overpressure about 1 km from a 1 megaton nuclear blast.
Spec Echo Arch for your site.
Share your threat level, span, and panel thickness, and we will walk you through the tested configurations and next steps.
